DA-500 Buried Sensor System

The DA-500, GEN2, Drive-Alert Vehicle Detection System now includes a control panel with an internal alert whistle chime with volume control and choice of three chime tones, two built in timer relays, both 12VDC and 24VDC contacts for additional accessories, Zoning to provide two different chimes for two different areas monitored with different sensors, a “system mute” feature, one sensor, and 100 feet of cable.

See our “Options and Accessories” below for longer lengths of cable and other features which can easily be added. Popular accessories include adding additional remote chimes and lights.

See the “Wireless Systems” directly below if you are interested in wireless vehicle detection systems.

The DA-500 has a sensor which monitors a 10-foot radius (20′ diameter) to detect disturbances in the magnetic field caused by vehicle traffic in driveways, farm lanes, intersections and any areas where knowledge of movement is desired. Up to three An additional sensors may be added to a DA-500. The DA-500 sensor is not a PIR or “beam” sensor. Thus, the DA-500 does not have the false alarms common to that type of sensor; such as being triggered by animals, fog, weather, etc…

Homes

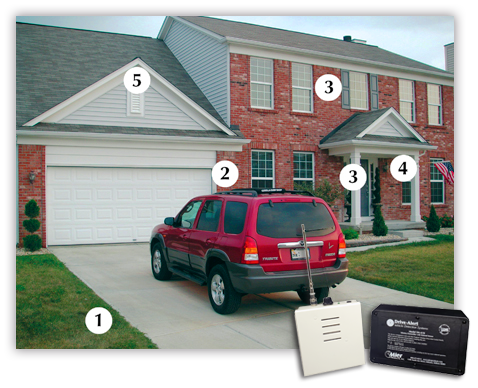

A residential installation allows the homeowner to know when someone enters the driveway or moves a vehicle or equipment. This is accomplished by a buried sensor which detects moving metal objects such as cars, trucks, motorcycles, trailers, or bikes. Then the sensor sends a signal to the control panel which sounds an electronic whistle alert.

Businesses and Drive-Up Windows

National pharmacy chains, restaurants, banks, and other businesses across the country utilize the Drive-Alert to detect because it provides a pleasant tone with volume control. See more in the “accessories” section below. See the “Drive-Up Window Installation Examples” show above to choose from a hard-wired DA-500 system, or a wireless DA-100 system, which are both perfect for drive-up window installations.

Activation of Other Systems

The DA-500 Control Panel has 12VDC and 24VDC dry contacts, and timer relays, that can be used to activate gates, DVRs, external bells, lights, strobes, sirens, etc. whenever the DA-500 detects vehicles or a disturbance in the magnetic field around the sensor(s)

Asset Protection for Farms, Construction Sites, etc.

Placing the sensor next to objects such as campers, tractors, trailers, gasoline tanks, etc. allows you to detect any movement of those objects, aiding in the prevention of theft and vandalism.

DA-700 Wireless Drive-Alert

Easily Installed Wireless System with additional dry form C contacts to control accessories and tie into other systems, plus many more included features!

DA-700-611

DA-700

The wireless DA-700 Drive-Alert Vehicle Detection System is a kit that includes a DA-700CP Control Panel/Receiver and a DA-610TO Sensor/Transmitter.

The DA-700-611 is a kit that includes the DA-700CP and a DA-611TO Sensor/Transmitter in place of the standard DA-610TO.

The DA-700CP, DA-100CP, DA-610TO, DA-611TO and DA-612TO can also be purchased separately, and any number of each can be used together.

These systems detect vehicles approaching, or the movement of assets such as trailers, gates, construction equipment, tractors etc. and send a signal back to the control panel to provide an audible chime alert, as well as activate other equipment such as lights, signs, phone dialers or tie into and trigger other security panels.

Features of the DA-700:

• The DA-700CP Control Panel/Receiver has the built-in additional dry form C contacts we’ve had in previous models, PLUS:
  • +24V DC power source for 24VDC accessories, AND…
  • +12V DC power source for 12VDC accessories
  • TWO internal programmable timers – no need for a separate timer accessory for lights; they are built in!
  • Compatible with, and will interface with many security panels and systems
• The DA-700CP Control Panel/Receiver also has a built-in chime with volume-control and a choice of three different chime tones
• The DA-700 features ZONING for different audible-alerts up to three different areas (additional sensor/transmitters required)
• The DA-700 features ADDRESSING when you want your system to be on a different address than others that might be nearby
• Mute/Delay feature allows a user to program various times from 5 minutes to 1 hour to “Mute” the system with a push of a button. This feature is handy when someone leaves the home early in the morning and doesn’t want to wake others, or if they are having a party and don’t want the system to alert them with each vehicles arrival.
• Visible Power LED, Low Battery LED, Valid Signal Transmission from Sensor/Transmitter LED, as well as LEDs for the Mute function and each of the dry form C contacts
• Reception between the Sensor/Transmitters and the Control/Panel Receiver up to 1000 feet, or up to 8/10 of a mile when using the DA-660 Long-Range Reception Booster Antenna
• Ability to jump the signal to other DA-700CP or DA-100CP chimes up to 1000 feet, or 8/10 of a mile, to other locations or buildings when using the DA-REPEATER Wireless Signal Repeater accessory
• Ability to provide additional chimes in more locations in the home or other buildings via:
  • If longer distances are needed use our DA-REPEATER Wireless Signal Repeater with our DA-100CPS or additional DA-700CPs up to 1000 feet away, or up to 8/10 of a mile away if using the DA-660 Long-Range Reception Booster Antenna with them
  • If your customer wants additional hard-wired chimes instead of wireless, use the DA-655 Chime accessory
• Ability to activate lights when a vehicle of movement of assets are detected:
  • Tie in your hard-wired light controls directly into the DA-700CP Control Panel
  • Tie in our wireless DA-606LK or DA-606LK2 light kits

These DA-700s are backward compatible with previous generations of Mier accessories, sensor/transmitters, and control panels.

DA-100 Wireless Drive-Alert

Simple, Reliable and Easily Installed Wireless System!

The wireless DA-100 Drive-Alert Vehicle Detection System includes a control panel with an internal alert chime with volume control and a DA-611TO Sensor/Transmitter. This is the perfect wireless system for someone who wants an economical and reliable wireless system, and only needs an audible chime alert. The DA-100-610 includes a DA-610TO instead of the DA-611TO for those installations that require a different sensor/transmitter.

The DA-100 control panel is also a perfect wireless accessory for people who already use a DA-100, or a DA-500 or DA-700 with a DA-REPEATER and would like an additional alert (chime with volume control) in another building or location.

These wireless systems have a sensor/transmitter which monitors a 12-foot radius (24’ diameter) to detect disturbances in the magnetic field caused by vehicle traffic in driveways, farm lanes, intersections and any areas where knowledge of vehicle movement is desired. Unlimited sensors may be added. The sensors are not a PIR or “beam” sensor. Thus, they do not have the false alarms common to IR sensors; such as being triggered by animals, fog, weather, etc.

Options and Sensors

DA-051 sensor with cable length of your choice

DA-051-100

If you intend on ordering a DA-500, but need more than the standard 100′ of direct-burial cable, then order a DA-500CP which is the DA-500 control-panel, AND ALSO order the DA-051-_ _ _.

The DA-051 is the sensor, and then you fill in the spaces with the length of cable you will need (in feet) from 10′ up to a maximum of 2500′. An example would be a DA-051-200 would be a sensor with a 200 feet of cable.

Wireless DA-660 Long-Range Receiving Antenna

DA-660

If you intend on ordering a DA-100 or DA-700 wireless Drive-Alert, but need more than the standard 1000′ range, then order a DA-660 Reception Booster Antenna which increases the range of these systems up to 8/10-mile!

Wireless DA-REPEATER Alert-Signal Repeating Device with 1000-ft. Range

DA-REPEATER

This Drive-Alert Signal Repeater can be attached to any DA-500 or DA-700 Drive-Alert Control Panel/Receiver. It will repeat the alert signal to other wireless Control Panel/Receivers (DA-100CP or DA-700CP) up to an additional 1000 feet away. If a site has multiple buildings and/or locations where an alert is desired, adding a DA-REPEATER to a DA-700 Control Panel/Receiver, and then adding DA-100CP Chimes with Volume Control (shown below) is the perfect answer! Once again, you can also attach a DA-660 Antenna (shown above) to increase that range up to 8/10-mile.

Wireless DA-610TO Transmitter with Internal Sensor (for use with models DA-100 and DA-700)

DA-610TO

Unlimited sensors may be used with the new wireless series of Drive-Alerts to monitor several areas. The sensor is encased in a durable outdoor metal enclosure. They monitor a 14-foot radius (28′ diameter). These sensors require two AA Lithium batteries which will last two years under normal usage. These sensors may be placed up to 1000 feet from the control panel, and up to 8/10-mile when used with a DA-660 booster antenna. The sensors are tamper resistant due to the fact that if anyone touches or moves one, the alert will be triggered.

Wireless DA-611TO Transmitter with External Sensor and 50-feet of cable (for use with models DA-100 and DA-700)

DA-611TO

This option is used when you cannot place the standard DA-610TO Sensor/Transmitter right next to the driveway. The DA-611TO allows you to bury the sensor right next to, or under, the drive and then place the transmitter up to 50′ away under some landscaping or up a tree or pole (this also helps increase transmission reception). If you want this option, order a DA-100 or DA-700-611.

DA-612TO

Wireless DA-612TO Transmitter with Two External Sensors and Cable

This is the same as the DA-611TO above but with two external sensors instead of one.

Save

Accessories – Chimes

DA-655

DA-655 Hard-Wired Chime with Volume Control (for use with models DA-500 and DA-700)

The DA-655 is ideal when a customer wants additional chimes, but does not want wireless. The DA-655 will be hardwired to the control panel of the DA-500 or DA-700, and it emits a pleasant chime when a vehicle is detected. There is also a volume control knob, and this unit can be turned up to a high level. It also includes a choice of chime tones, just like the chimes built into the DA-500 GEN2, the DA-100 and the DA-700. The DA-655 works in a 9VDC to 30VDC range.

To add additional wireless chimes to a DA-500 or a DA-700, use the DA-REPEATER and the DA-100CPs mentioned above in Options.

Save

Accessories – Lights

DA-505 and DA-505W

DA-505 and DA-505W Hard-Wired Light Timer Control

Timer Control Relays are already built into the Second-Generation DA-500 and the DA-700. For older Gen 1 DA-500s, you can use a DA-505 or a DA-505W to turn on 10 amps of lights, sirens or bells. The DA-505 unit simply plugs into a 120 VAC outlet and contains its own receptacle to provide power to lights or alarms. The DA-505W is a “stand alone” unit that gets its power from the Drive-Alert, and provides a N.O., timed, dry contact to switch a load (lights, contactors, bells, etc) rated at 10 amps, 120 volts AC. The DA-505W is a terrific intermediate interface with a “healthy” large relay within, that may be used to control other functions such as triggering a large commercial lighting contactor, billboards, holiday lights, etc. The alarm or lights triggered by either of these units can be adjusted to operate from 1 to 45 minutes. Both may be used with all models. Please call our technical support team for information.

DA-606LK

DA-606LK Wireless Lights with Timer Control (for use with DA-500 and DA-700)

This accessory comes with a DA-606 Timer Control which allows you to turn the lights on from 1 minute to 60 minutes. In addition to the standard audible alert in Drive-Alerts, the DA-606LK accessory will also wirelessly activate lights up to 100′ away! Alerts occur whenever a vehicle is detected, or whenever a Drive-Alert sensor is moved for asset protection.

Additional DA-071 Light Switches and DA-072 Lamp Modules may be purchased.

DA-071

DA-071 Wireless Light Switch (for use with the DA-500 and DA-700 and must be paired with the DA-606 shown above)

DA-071 Light Switch activates the lights controlled by that switch and also works as a normal light switch.

DA-072

DA-072 Wireless Lamp Module (for use with the DA-500 and DA-700 and must be paired with the DA-606 shown above)

DA-072 Lamp Module activates a lamp and also allows the lamp to work normally.

DA-073

DA-073 Wireless Heavy-Duty Wall Outlet (for use with the DA-500 and DA-700 and must be paired with the DA-606 shown above)

DA-073 Outlet includes a top receptacle that controls up to a maximum of 1500 watts or maximum 15-amp current draw.

Accessories – Other Miscellaneous Products

DA-054 Splice Kit

DA-054 Splice Kit (for use with model DA-500)

Mier tested and approved, this splice kit provides waterproof connection for splicing the direct burial cable. Mier recommends ALWAYS using this kit when it is necessary to splice, or add longer lengths of cable.

DA-ROCK1

DA-ROCK1 Fake Rock to Hide Wireless Sensors (to cover the DA-610TO and DA-611TO sensor/transmitters)

These fake landscaping rocks allow customers to easily hide their wireless Drive-Alert sensor/transmitter boxes.

DA-050

DA-050 Replacement UL Listed 24V Power Pack (for use with various Drive-Alert Control Panels)

If you lose or damage the power pack that comes with your Drive-Alert System, order the DA-050 Replacement Power Pack.
